Hello Tim,
lacking a minimal working example I can only guess what you refer too. Recent
work of mine with DW however equally considered data with columns lacking some
entries, too. The solution working «good enough» for me, aiming for whisker
plots and their statistics, however was to start with a table with each cell
in the corresponding column already filled with the place holder «N/A»; to be
replaced by real data only if these are at hand. (This equally may be entered
prior to DW with a conditional formatting in a spred sheet, or as manual edit
per cell in DW, too.) Thankfully, this kind of «other entry type» seen in other
statistical programs (e.g., R) seems to be recognized by DW, too.

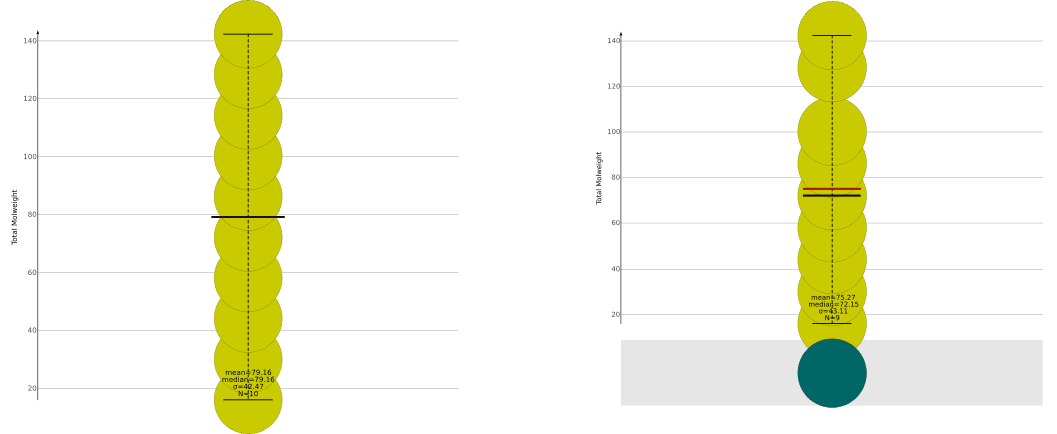

As an example, I populated an array about the first ten alcanes, and let DW
determine their molecular weight; eventually displayed as a whisker plot (cf.
alkanes_complete.dwar). In a copy of this file (alkanes_except_octaneMW.dwar)
the entry about the molecular weight for octane's was substituted by the «N/A»
place holder. Now, the dot about the entry missing (or, in parlance of R, about
«[data] not available») is set below the others, no longer considered for further
statistics -- both on screen, as well as in the plots' statistics.
This approach was used with DataWarrior (stable release 5.0.0) running in Linux
Xubuntu (18.04.2 LTS, 64 bit).
Norwid
