Hello Greg,

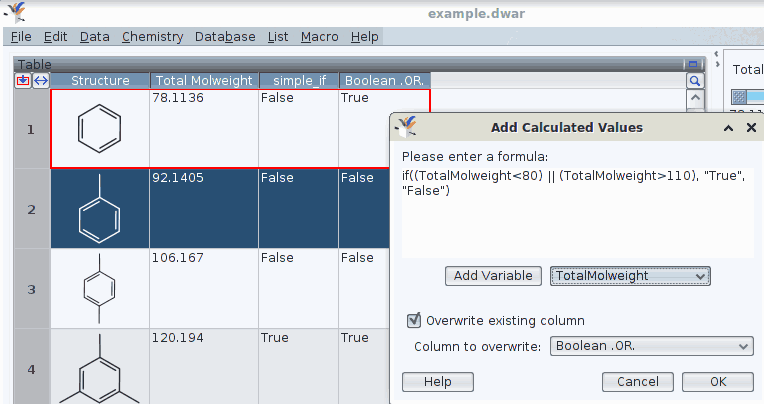

once the properties are stored in DW's main table, both Boolean .or. and .and. may be used for further analysis. In the example below, I extended the initial query for molecular weights greater than 110 (yielding mesitylene) to one that would accept molecules with a molecular weight of either less than 80 .or. greater than 110 by the instruction
if((TotalMolweight<80) || (TotalMolweight>110), "True", "False")
in an additional column (Data -> Add Calculated Values). As expected, the second query yields both benzene and mesitylene now.
![index.php?t=getfile&id=290&private=0](index.php?t=getfile&id=290&private=0)
It is possible to use multiple properties of different columns, too. DW's mathematics, including logic expressions, which may be used are presented on
http://www.openmolecules.org/help/jep.html
Norwid
