Aligning molecules to a common substructure [message #644]

Sat, 05 October 2019 03:05

sbembenek18
Messages: 62
Registered: April 2019

Member

Is it possible to align all the molecules to a common substructure?

Report message to a moderator

Re: Aligning molecules to a common substructure [message #651 is a reply to message #644]

Mon, 07 October 2019 00:02

nbehrnd
Messages: 240
Registered: June 2019

Senior Member

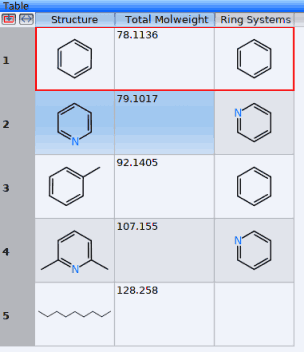

Please indicate if I'm wrong, but I understand your case like aiming to sort molecules
featuring the same core substructure in groups together. If so, I suggest to try
Chemistry -> Analyse Scaffolds -> Murcko scaffold. This will add a new column which
equally allows sorting of the data set, e.g. to alter a sort by structure (here, the
first column):

index.php?t=getfile&id=115&private=0

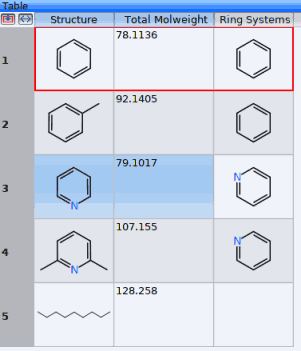

by a sorting according to the Murcko scaffold (here the third column):

index.php?t=getfile&id=116&private=0

As usual, the header of the column (e.g., the third one) may be renamed to your needs.
Note, the manual includes an illustrated definition about different scaffold criteria
available to you ( http://www.openmolecules.org/help/chemistry.html#ScaffoldAna lysis).

Norwid

Attachment: sort_structure.png
(Size: 6.16KB, Downloaded 1330 times)
Attachment: sort_MurckoScaffold.png
(Size: 6.03KB, Downloaded 1412 times)

Report message to a moderator

Re: Aligning molecules to a common substructure [message #655 is a reply to message #651]

Wed, 09 October 2019 23:17

thomas
Messages: 747
Registered: June 2014

Senior Member

You can generate new atom coordinates with:

"Chemistry -> Generate 2D Atom Coordinates"

Then check

"Automatically detect scaffolds and unify their orientation"
and select a scaffold detection method: "most central" should be fine

When clicking OK, DataWarrior will rearrange your 2D-structures such that the most central ring system, where multiple molecule share the same scaffold, this scaffold is always drawn the same way.

For more flexibility, you may provide scaffolds with defined coordinates in the same dialog.

Report message to a moderator

Re: Aligning molecules to a common substructure [message #664 is a reply to message #651]

Fri, 11 October 2019 18:48

sbembenek18
Messages: 62
Registered: April 2019

Member

thanks!

Report message to a moderator
