Home » DataWarrior » Bug Reports » Canonical codes do not distinguish stereoisomers (Distinguish stereoisomers flag is ignored)
Canonical codes do not distinguish stereoisomers [message #2431] Fri, 29 August 2025 15:32 Go to next message
wsmts is currently offline  wsmts
Messages: 8
Registered: February 2023
Junior Member
Hi,

I noticed that for some molecules the Canonical codes don't distinguish stereoisomers even though the box was selected in the calculation dialog. (I had also deselected distinguish tautomers).

I was expecting the canonical codes to follow the pattern of the InchiKeys but they ignored the stereochemistry for these examples. (dwar attached)

v06.05.01 (Windows 11)

Best,

--
Wim

Report message to a moderator

Re: Canonical codes do not distinguish stereoisomers [message #2432 is a reply to message #2431] Thu, 04 September 2025 11:20 Go to previous message
thomas is currently offline  thomas
Messages: 735
Registered: June 2014
Senior Member

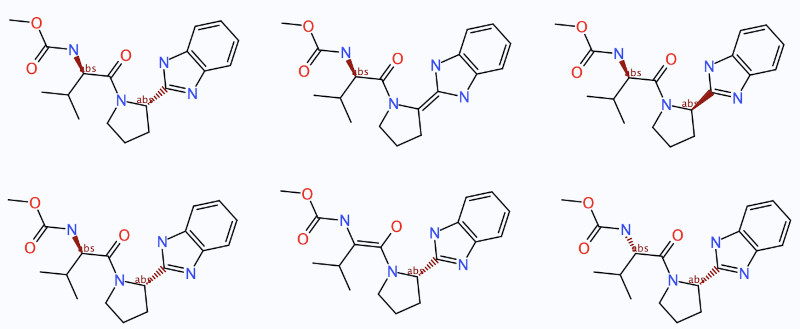

I agree that this is disturbing at the first glance. However, here we have a situation, were the set of tautomers contain multiple stereo isomers. The canonical code of your different stereo isomers correctly differs for your different stereo isomers if it shall also distinguish tautomers. However, if you ask for different tautomers to create the same code, then this is what you get. The upper part of the image shows three tautomers of a part of your structure where from left to right a stereo center inverts its configuration, but all three structures are just different tautomers of the same thing. The bottom part of the image shows the same situation for the other stereo center.

/forum/index.php?t=getfile&id=907&private=0

Report message to a moderator
