icon5.gif  Combinatorial Library [message #2154] Thu, 11 April 2024 14:13 Go to next message
becky26 is currently offline  becky26
Messages: 2
Registered: April 2024
Junior Member
Hi,

New to data warrior and I'm trying to enumerate a combinatorial library for a multicomponent reaction I am working on. I have tried defining a reaction in the step wise way, but I always end up producing thousands of the product I defined. I am aiming to input commercially available building blocks for my reaction to assess possible scope but struggling with defining the reaction.

I only have success generating more than 1 product when I use the templates, but the templates are not applicable to my reaction.

I've followed the manual but must be missing something.

Any help would be much appreciated.

Report message to a moderator

Re: Combinatorial Library [message #2155 is a reply to message #2154] Thu, 11 April 2024 15:02 Go to previous messageGo to next message
thomas is currently offline  thomas
Messages: 715
Registered: June 2014
Senior Member
Can you give me a little example of what you do that doesn't work?

Report message to a moderator

Re: Combinatorial Library [message #2157 is a reply to message #2155] Fri, 12 April 2024 12:18 Go to previous messageGo to next message
becky26 is currently offline  becky26
Messages: 2
Registered: April 2024
Junior Member
Hi,

Thanks for replying.

I am defining the first step in my reaction my modifying the amide template, I'm trying to have the general reaction for a hydrazone, I check that all the atoms map. Then I import a file of the aldehyde and hydrazine commercial building blocks into the reagent page and they all display correctly. The enumeration runs, but all reactions no matter the reagents they use generate the same basic scaffold that was defined in the initial reaction page.

I've attached some pictures/forum/index.php?t=getfile&id=823&private=0[img]/forum/index.php?t=getfile&id=824&private=0[/img]

Thanks

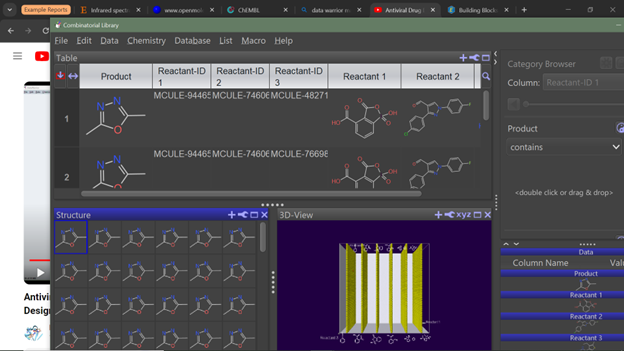

  • Attachment: CombLib1.png
    (Size: 39.32KB, Downloaded 74 times)

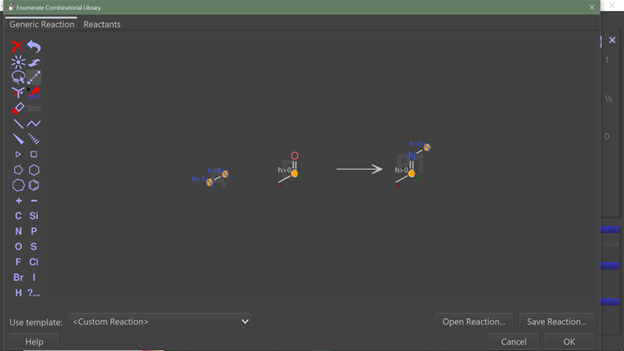

  • Attachment: CombLib2.png
    (Size: 120.67KB, Downloaded 95 times)

Report message to a moderator

Re: Combinatorial Library [message #2161 is a reply to message #2157] Tue, 16 April 2024 22:18 Go to previous messageGo to next message
nbehrnd is currently offline  nbehrnd
Messages: 224
Registered: June 2019
Senior Member
Hi becky26,

based on the screen photos shared by you, I set up a small combinatorial library with 10 by 10 reagents proposed by DW (version 06.01.03 in Linux Debian). There was no particular problem observed, many different products were generated (though no oxadiazole), see the .zip archive attached below. There however is a small discrepancy between the reaction scheme you report with CombLib1.png (a two component reaction) vs the reagent array you eventually used (CombLib2.png) indicating three components to yield the product.

Norwid

[Updated on: Tue, 16 April 2024 22:19]

Report message to a moderator

Re: Combinatorial Library [message #2181 is a reply to message #2161] Wed, 24 April 2024 14:04 Go to previous message
thomas is currently offline  thomas
Messages: 715
Registered: June 2014
Senior Member
the resolution of you first image is a little low, but it seems that the atoms of your first reactant are not mapped to product atoms. In that case DataWarrior assumes the atoms in the product are not coming from the reactant and will not consider that reactant.

Report message to a moderator
